How to use Ecamm Live with CueCam Presenter

The simplest way to use CueCam with Ecamm is to select CueCam’s virtual camera as a source in Ecamm Live. ecamm-seletion

Select CueCam Audio as your main mic input. Always leave it at 100% or you will not get the benefits of CueCam’s LUFS metering. audio

This gives you:

  • Automatic Video Pencil and Shoot integration
  • All of CueCam’s live and card-based sharing features (slides, images, videos, window, second camera and more)
  • CueCam’s Aside 3D, camera LUT and green screen features
  • Audio from videos, screen shares and other CueCam / Video Pencil sound effects
  • The benefits of CueCam’s LUFS audio meters

You can add any additional branding and custom overlays in Ecamm to use in your live streams, along with other features like Interview Mode.

Drawing on your screen or videos

If you want to draw on a video or your screen using Video Pencil, be sure to share content via CueCam, not Ecamm.

How to use Video Pencil with CueCam Presenter

How to quickly share a video from your computer

How to quickly share your desktop

Keynote and Powerpoint presentations

Build your presentation inside CueCam instead of sharing, for example, a Keynote window.

How to import slides from Keynote, Powerpoint or other applications

Use the right program feed in your teleprompter

When live streaming, use CueCam’s teleprompter to share Ecamm’s Program Window instead of using CueCam’s Virtual Camera for a more accurate view of what you are sharing.

Understanding the teleprompter window

Switching Ecamm scenes from CueCam cards

You can drive your Ecamm-based stream from CueCam by triggering scene changes from cards.

With Ecamm running (and after accepting permission for CueCam to control Ecamm), you can add an Ecamm scene to a card.

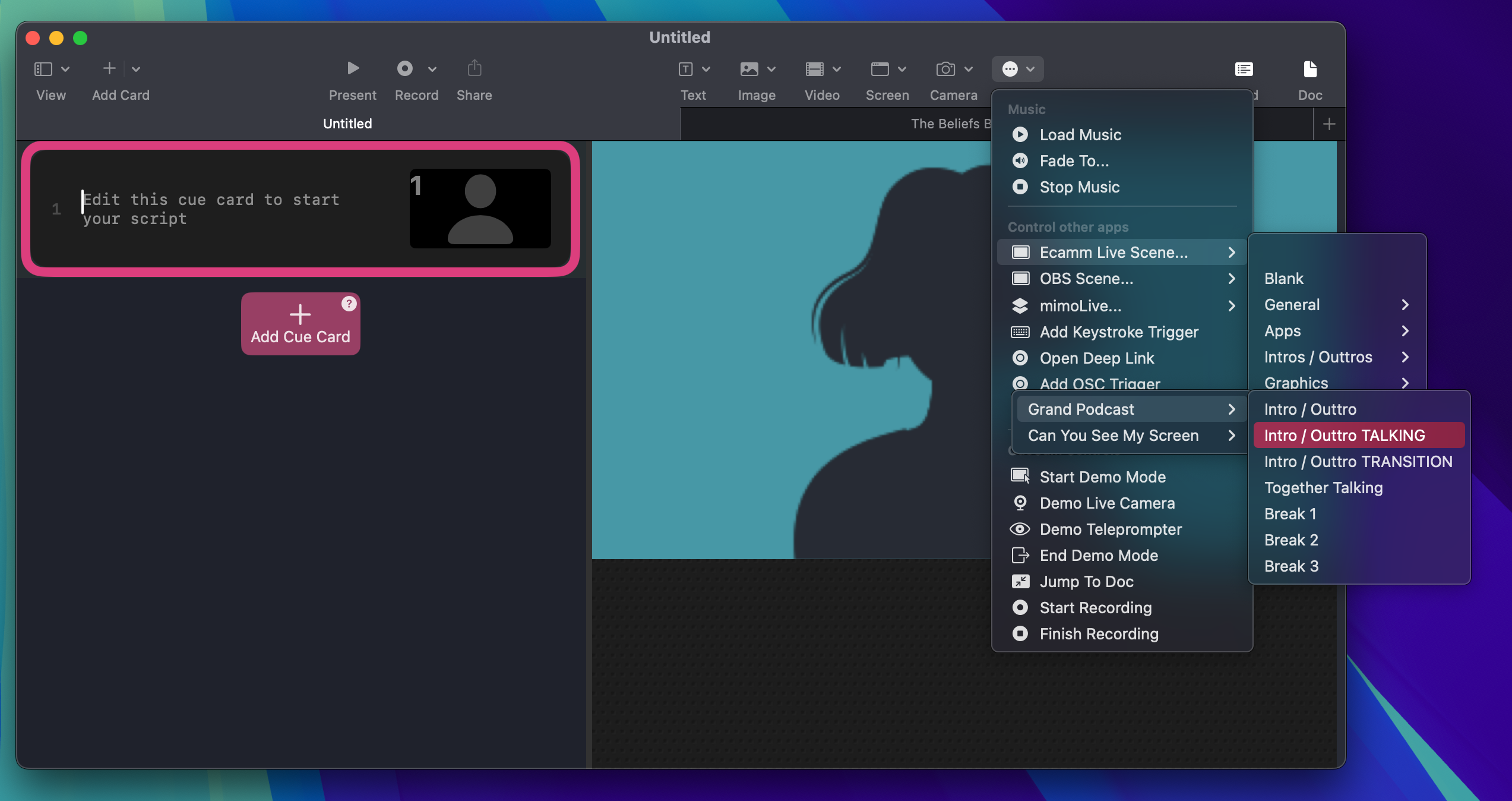

Click the Add (+) button and scroll to Ecamm Live Scene. Under this option you will find all of the scenes in your current Ecamm profile.

add-trigger

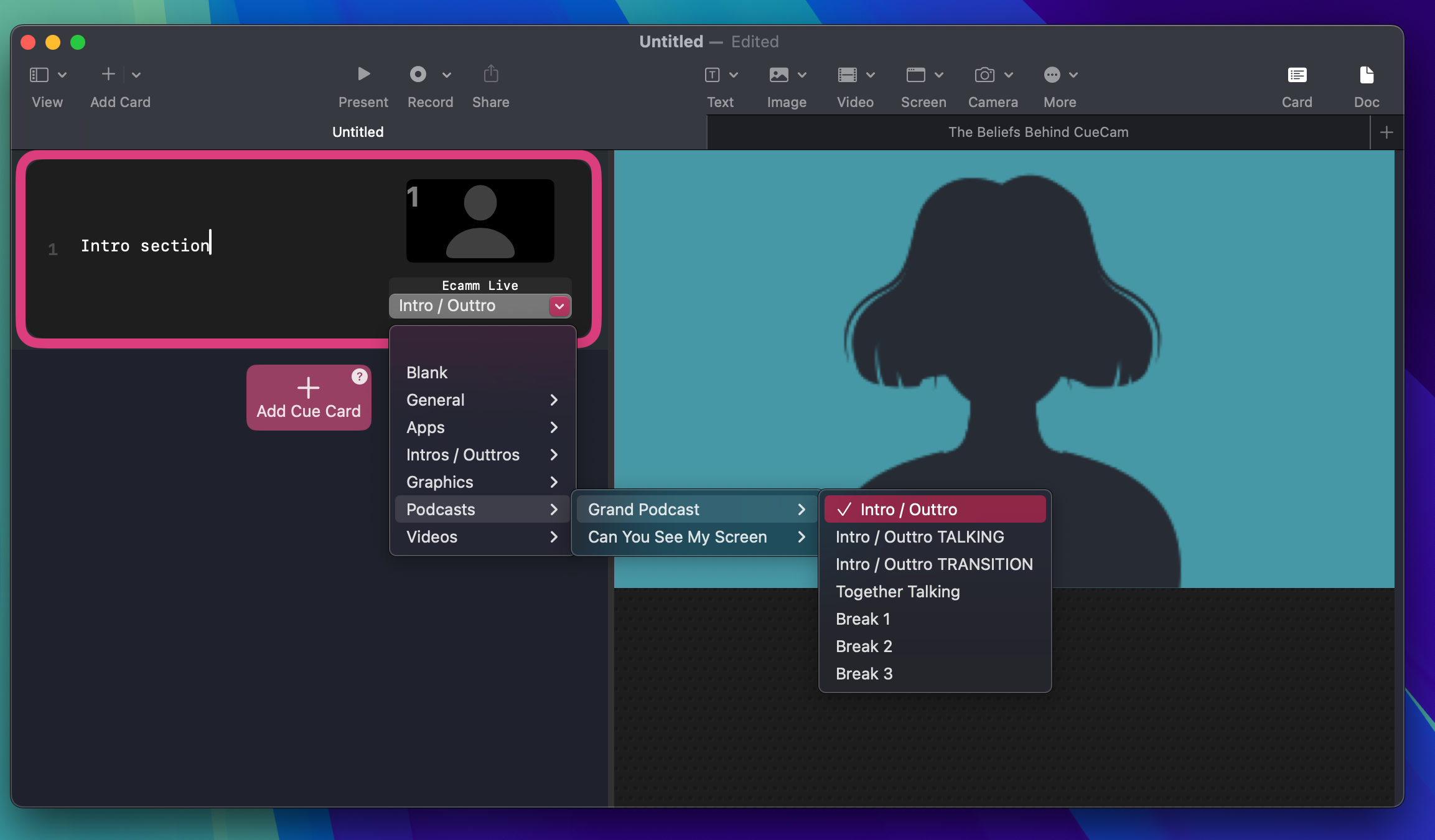

You will now see the Ecamm scene selector in your card. When this card is presented, Ecamm will switch to the selected scene. card-with-trigger

How to draw on an Ecamm Live scene that doesn’t use CueCam as the main source

CueCam exposes a Syphon feed of the transparent layer from Video Pencil.

You can add this as a camera overlay to any Ecamm scene.

Make sure it fits edge-to-edge full screen by snapping to the centre and then using the mouse wheel or track pad to zoom it to the maximum size.

Lock the layer so you can still drag your Ecamm window. syphon

In order to see Ecamm’s output on your iPad, either select Ecamm’s Virtual Camera as a source in CueCam or select Ecamm’s NDI output in Video Pencil.

First enable NDI.

ndi-out

Then select the source on your iPad. ecamm-selected-on-ipad

In future it will be possible to switch iPad cameras directly from CueCam but if you need this urgently, please add a suggestion in the Discord. How to request new features for CueCam Presenter
